Cron Rescheduling

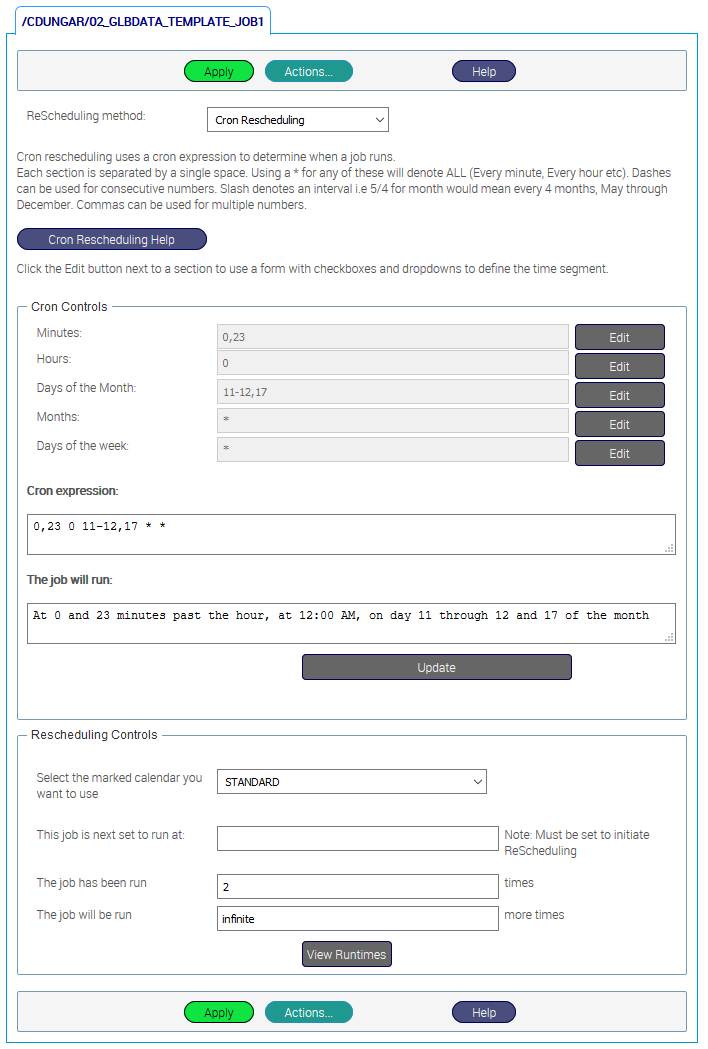

EnterpriseSCHEDULE allows jobs to be scheduled using a 5 segment Cron string that designates Minutes, Hours, Days of the Month, Months, and Days of the week. The Web Client can be used to construct the Cron Expression using handy forms with dropdowns and checkmarks. The expression may also be entered manually in the main form following the syntax guidelines outlined below.

Minutes - Click on the Minutes Edit Button

Click Every minute to have the job run every minute

Click Every x minutes starting at y minute to set an interval

Click Specific minute to check off specific minutes the job will run

Hours - Click on the Hours Edit Button

Click Every hour to have the job run every hour

Click Every x hours starting at y hour to set an interval

Click Specific hour to check off specific hours the job will run

Days - Click on the Days Edit Button

Click Every day to have the job run every day

Click Every x days starting at y day to set an interval

Click Specific day to check off specific days the job will run

Months - Click on the Months Edit Button

Click Every Month to have the job run every Month

Click Every x months starting at y month to set an interval

Click Specific months to check off specific months the job will run

Weekdays - Click on the Weekdays Edit Button

Click Not Set to have the job run every Day of the Week (Sunday-Monday)

Click Monday-Friday to fave the job run only on Weekdays

Click Specific days of the to check off specific days of the week the job will run

This diagram shows the order of the time segments of the cron expression:

┌──────────────── Minutes (0 - 59)
│ ┌───────────── Hours (0 - 23)
│ │ ┌────────── Day of the Month (1 - 31)
│ │ │ ┌─────── Month (1 - 12) OR JAN,FEB,MAR,APR ...
│ │ │ │ ┌──── Day of the Week (0 - 6) (Sunday=0 or 7) OR SUN,MON...
│ │ │ │ │
* * * * *

Examples

These examples show the Cron expression as well as the Readable text produced for the expression.

*/5 1-2 * * *
Every 5 minutes, between 01:00 AM and 02:59 AM

0,30 6 * * 1-5
At 0 and 30 minutes past the hour, at 06:00 AM, Monday through Friday

10 7,10 * * *
At 07:10 AM and 10:10 AM

0 11,18,23 * * *
At 11:00 AM, 06:00 PM and 11:00 PM

30 23 * * SUN
At 11:30 PM, only on Sunday

0 03 * * *
At 03:00 AM

30 23 * * SAT
At 11:30 PM, only on Saturday

* */1 * * *
Every minute

The syntax allowed is

Syntax Example	Description
*	Designates all instances of that time, e.g. all days
5	Designates a time or day of the week, month or day of the month (i.e. 5 would be the 5th hour or the 5th month - May)
5,7,9	The 5th 7th and 9th of a time or day of the week, month or day of the month
5-10	A range of time (i.e. 5-10 would be 5 AM to 10AM, or the 5th through the 10th of the month)
5/3	An interval starting on a particular time frame (i.e. 5/3 would be every 3 hours starting at 5:00 AM)
2-31/5	An interval starting and ending at a particular time frame (i.e. 2-31/5 would be every 5 days from the 2nd to the 31st)

Category	Value	Description
minute	0-59	This controls what minute of the hour the command will run on.
hour	0-23	This controls what hour the command will run on.
day	1-31	This is the Day of Month, that you want the command run on.
month	1-12	This is the month a specified command will run on.
weekday	0-6	This is the Day of Week that you want a command to be run on.

Sub-statements like 2-20 can be combined with other statements such as 3,4,5 using a comma.

Note: ALPHABETIC representations for Month and Day of Week may be used but will be translated to numbers when using the Edit windows. For example MON will translate to 2. JUN will translate to 6.

The job is scheduled using the Cron string that is designated using the string creation method in the property page or designated manually.
